Detailed Product Description
Product Name: | Non Rising Gate Valve | Size: | Big Size |
Type: | Full Port | Pressure: | 175psi |
Connect: | Thread | Other Name: | Solid Wedge Gate Valve |
High Light: | water gate valve , oil gate valve | ||

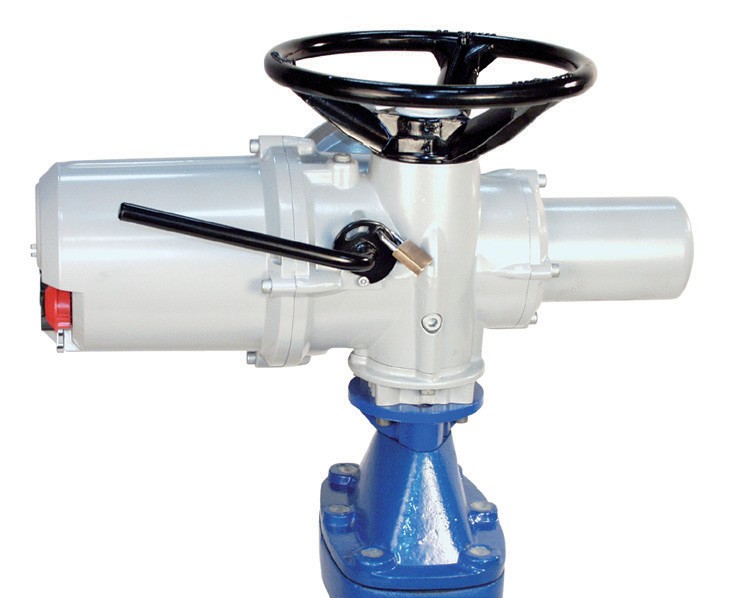

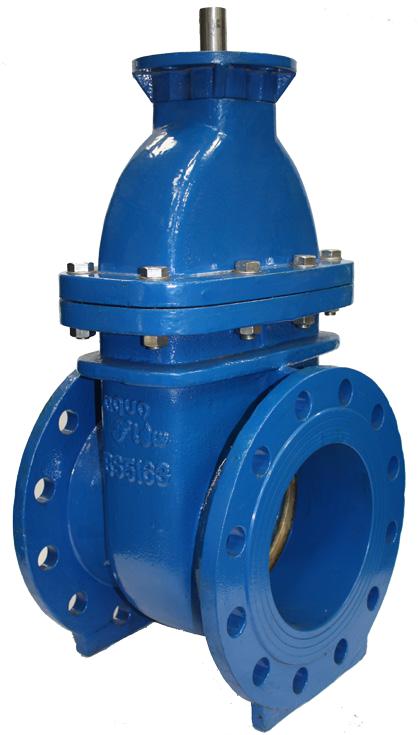

Big Size Non Rising Gate Valve / Automatic Steel Solid Wedge Gate Valve
Non Rising Gate Valve Specifications:
Technical Specification
- Nominal diameter: 2"-40"
- Nominal pressure: 150Lb 300Lb 600Lb 900Lb 1500Lb
- Applicable Medium: water ,gas,oil,and other causticity medium.
Non Rising Gate Valve Applications Standard
Design and manufacture as API600, ANSI B16.34
Face to face dimensions as ANSI B16.10
End flange dimension as per ANSI B16.5
Pressure-temperature ratings as ANSI B16.34
Pressure test as API 598
Test Pressure
Non Rising Gate Valve Features:
- "H" type wedge:
Gate valve has "H" type , flexible single wedge. It can compensate the distortion of body. So it
has reliable sealing and prevent wedge against difficult operation because of overload. It is
suitable to steam and other high temperature medium.
- Precise design:
Design the body and bonnet according to precise calculation. body and bonnet have high strength
, rigid and flow ability
GATHWFSCR PN25 DN50
THREADED WEDGE TYPE SCREWED BONNET GATE VALVES
DESIGN SPEC : BS 5154 SERIES B
END CONNECTION(S) : NPT FEMALE
PRESSURE DESIGN, ASME CL : PN 25
TYPE OF WEDGE : SOLID
TYPE OF STEM :INSIDE SCREW
RISING
TYPE OF BONNET : SCREWED
MAT, BODY : COPPER ALLOY
MAT,TRIM : COPPER ALLOY
MAT SPEC, BODY&BONNET : ASTM B 62
MAT SPEC, STEM : ASTM B16
MAT SPEC, GLAND : ASTM B 16
SIZE, DN : 50
GATE VALVE, COPPER ALLOY (BRONZE/BRASS),
SIZE: 1/2", 1000 PSIWOG (wATER, OIL OR GAS)
300 PSI SATURATED STEAM, SCREWED ENDS (API FEMALE),
UNION BONNET, COP DESIGN RATING:
1000 PSI WOG (WATER, OIL OR GAS),
300 PSI SATURATED STEAM
BODY MATERIAL: COPPER ALLOY (BRONZE / BRASS)
SIZE: 1/2"
CONNECTION: SCREWED ENDS (API FEMALE)
STYLE: UNION BONNET
TRIM MATERIAL: COPPER ALLOY (BRONZE / BRASS)
OPERATION: HANDWHEEL
SPECIFICATION STANDARD: BS154 OR MSS-SP-80 EQUIVALENT
SUPPLIER REQUIREMENT: NO VISIBLE LEAKAGE
BORE: FULL BORE
Non Rising Gate Valve Parameters
Specifications | Size | Weight (g/pc) | |
Specification: | 1/4" | ||
Pressure: 20-25 bar | 3/8" | ||
Sizes: ½” up to 4” | 1/2" | 165 | |
Body: brass only | 3/4" | 195 | |
Handle :Iron type | 1" | 295 | |
Marking: only size | 1-1/4" | 410 | |
1-1/2" | 590 | ||
2" | 900 | ||
2.5" | 1850 | ||
3" | 2380 | ||
4" | 4500 | ||
Non Rising Gate Valve STANDARDS:
Design and Manufacture:API600 ,ASME B 16.34
Forged steel check valve: API 602
Inspection and Test:API598
End flange dimension:ASME B16.5 (for NPS≤24);AMSE B16.47 series B
end flange dimension:ASME B 16.25
Socket-weld dimension:ASME B16.11
Face to face and end to end:ASME B 16.10
Test Item | Shell Test | Seal Test | Back Seal Test | Air Seal Test | |||||
Medium | Water | Air | |||||||
Unit | MPa | Ibf/in2 | MPa | Ibf/in2 | MPa | Ibf/in2 | MPa | Ibf/in2 | |
Pressure (Class) | 150 | 3.1 | 450 | 2.2 | 315 | 2.2 | 315 | 0.5-0.7 | 60-100 |
300 | 7.8 | 1125 | 5.6 | 815 | 5.6 | 815 | |||
400 | 10.3 | 1500 | 7.6 | 1100 | 7.6 | 1100 | |||
600 | 15.3 | 2225 | 11.2 | 1630 | 11 2 | 1630 | |||
900 | 23.1 | 3350 | 16.8 | 2440 | 16.8 | 2440 | |||
1500 | 38.4 | 5575 | 28.1 | 4080 | 28.1 | 4080 | |||
