Integral Body Top Entry Ball Valve For Reducing External Leakage

Size:	NPS 2" To 48"	Pressure:	150LB To 2500LB
Temperature:	-196℃~610℃ Low Temperatue, Normal Temperature And High Temperature	Body And Trim:	Cast Steel, WCB,ASTM A105, ASTM A350 LF2, ASTM A182 F304 F304L F316/F316L/F51 F53 F55,ASTM A351 CF8 CF8M CF3M ASTM A182 F6a 17-4PH
Seat Material:	PTFE, RPTFE, DEVLON, Molon,PEEK,Metal Seat	Body And Stem Sealing:	Oring(FKM,FFKM NBR,FPM HNBR, VITON,EPDM, AFLAS), Spiral Wound Gasket(316SS+ Graphite) Packing(Graphite, PTFE)
Operation:	Wrench, Lever, Gearbox, Pneumatic, Hydraulic, Electric.	Design Feature:	Casting ,Forging, Full Bore,Reduced Bore,Integral Body,Three-pcs Ball Valve,Side Entry Design,Split Body, Top Entry Design,Metal To Metal Sealing,
High Light:	150lb top entry valve ,  48 inch full bore ball valve ,  integral body reduced bore ball valve

Top Entry Ball Valve,Online Maintenance Easy,Integral Body Ball Valve,Online Replacement &Repair,Reduce external leakage





Design Data

Design standard: API 6D,DIN3357-1 , EN12516-1

Face to Face standard: API6D, ASME B16.10, DIN3202

Connecting Standard: ASME B 16.5, ASME B16.47, DIN 2543/4,ASME B 16.25

Test & Inspect Standard: API 6D ,API 598

Working Temperature: -196℃~610℃

Connection type: RF,RTJ,FF,BW.BSPT,NPT

Sour environment:NACE MR0175



Design Feature

1: Full bore or reduced bore

2: Integral body structure

3: Double Block & Bleed, Double isolation and bleed(DIB-1&DIB-2)

4: Fire safe design(API 607)

5: Blowout-proof system

6: Anti-static design

7: Self cavity relief

8: Fugitive emission testing(optional)



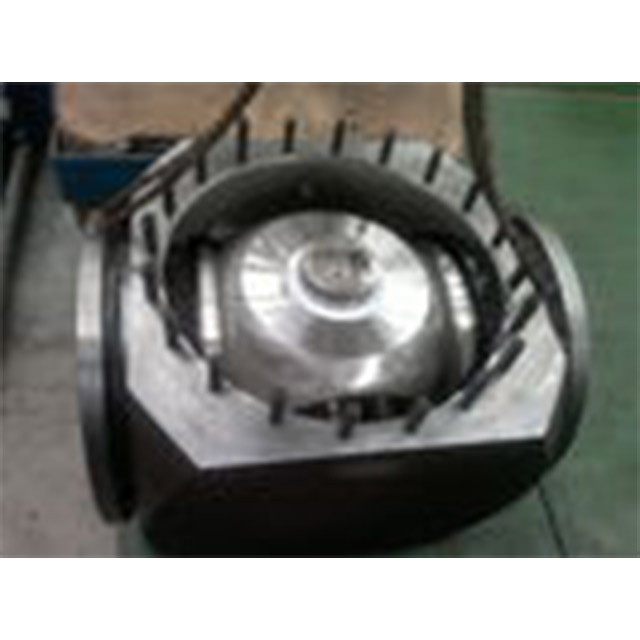

The ball is fixed by trunnion and stem for size 4” &smaller. Trunnion plate support for size 6” & larger

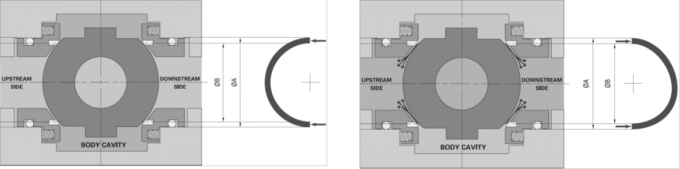

DOUBLE BLOCK & BLEED (DBB)

When the ball is in the closed position, each seat seals off the process medium independently at the same time between the up/down stream and body cavity, it allows bleeding the trapped cavity pressure (DBB) through drain and vent valve. The double block and bleed function make it possible to flush the valve under pressure and verify that the seat are sealing properly.

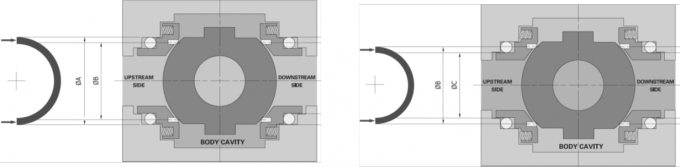

DOUBLE ISOLATION & BLEED (DIB)

Double piston effect seat, medium pressure, both upstream and downstream as well as in the body cavity, creates a resultant thrust that pushes the seat ring against the ball, valve with double piston effect seat rings require a cavity pressure relief to reduce the build-up of over pressure in the body cavity.

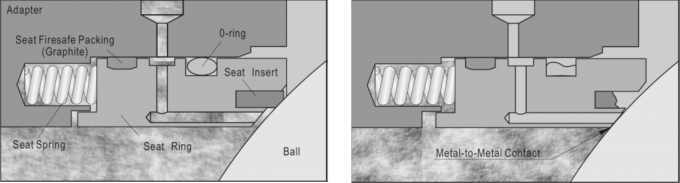

Fire safe design

Coosai ball valves ensures 100% pass of the fire safe test. As Coosai Ball valve applies two sealed design via O-ring seals and metal graphite spiral wound gasket. When the valve is on fire, non-metallic materials such as PTFE seat seals, gaskets ,O-ring seals,rubber etc will be damaged, meanwhile the outer layer of metal graphite spiral wound gasket provides a secondary seal. When the soft seat is burned, metal seat will automatically form a metal seal with ball under the urging of the spring which will effectively control the internal leakage and external leakage. Valve design fully accords with API 607, API 6FA, BS 6755, JB / T 6899 and other standards,

Blow-out proof stem:

The stem is made separately from the ball with integral T-type round shoulder, retained by bland .(other designs are Available on request)

Anti-static device:

Spring plus graphite type anti-static device are applied between the ball ,stem, gland Flange and body to keep the electrical Continuity between all the metallic components . And ensure the resistance lower than the most severe service requirement.

Grease injection device

For DN150 (NPS 6) & larger the stem and the valve seat are provided with a sealing grease injection device, For DN125 & smaller, we can provide the sealing grease injection device according to customer requirements. When the O-ring is damaged by accident, by injected sealant sealed to prevent the media through the valve seat ring and stem leaks.

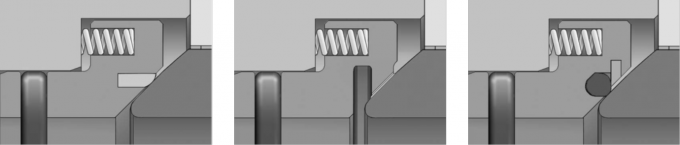

Sealing Options

Soft seat: Metal to Metal O-Ring seal

Simple structure reliable sealing Applicable to particulate Reliable sealing low torque meet customers' high

wide application low cost. media conditions sealing reliability and low torque requirements

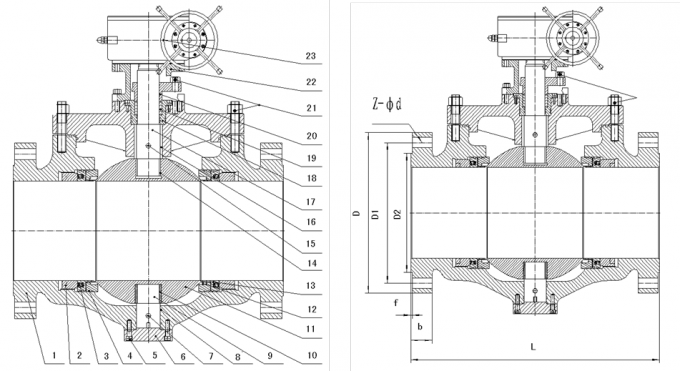

Material of major parts

№	Accessory name	Material ASTM
1	Body	A216 WCB/A105
2	Seat	Rubber ring
3	Seat ring	A182-F304
4	Sealing rings	PTFE
5	Ball	Graphite+F304
6	Stem	A276 410
7	Sealing gaskel	PTFE
8	Valve bonnet	A216 WCB/A105
9	Packing	Graphite
10	Packing gland	A216 WCB
11	Stud	A193 B7
12	Lever	A216 WCB
13	Nut	A194 2H
14	Stud	A193 B7



Note: Major parts of the valve series and materials of sealing surface differs according to different working condition and customers’ special requirements.

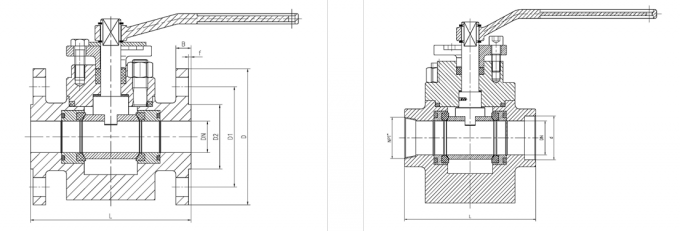

Pressure (Class)	Nominal diameter		Flange							Socket welding &Threaded connection
	DN (mm)	NPS (in)	L	D	D1	D2	B	f	Z-Φ	L1	NPT"	d
150	15	1/2	108	90	60	44	10	2	4-16	138	1/2"	23
	20	3/4	117	100	70	52	11	2	4-16	152	3/4"	28
	25	1	127	110	79.5	57	12	2	4-16	165	1"	35
	32	1¼	140	115	89	67	13.5	2	4-16	178	1¼"	43
	40	1½	165	125	98.5	73	15	2	4-16	190.5	1½"	49
	50	2	178	150	121	92	16.5	2	4-19	216	2"	62
	65	2½	190.5	180	140	105	18	2	4-19	241	2½"	74
	80	3	203	190	152.5	127	19.5	2	4-19	282	3"	90
300	15	1/2	140	95	67	44	15	2	4-16	140	1/2"	23
	20	3/4	152	115	83	52	16.5	2	4-19	152	3/4"	28
	25	1	165	125	89	57	18	2	4-19	165	1"	35
	32	1¼	178	135	98.5	67	19.5	2	4-19	178	1¼"	43
	40	1½	190.5	155	114.5	73	21.5	2	4-22	190.5	1½"	49
	50	2	216	165	127	92	23	2	8-19	216	2"	62
	65	2½	241	190	149.5	105	26	2	8-22	241	2½"	74
	80	3	282	210	168.5	127	29	2	8-22	282	3"	90
600	15	1/2	165	95	67	44	21.5	7	4-16	165	1/2"	23
	20	3/4	190.5	115	83	52	23	7	4-19	190.5	3/4"	28
	25	1	216	125	89	57	24.5	7	4-19	216	1"	35
	32	1¼	229	135	98.5	67	28	7	4-19	229	1¼"	43
	40	1½	241	155	114.5	73	29.5	7	4-22	241	1½"	49
	50	2	292	165	127	92	32.5	7	8-19	292	2"	62
	65	2½	330	190	149.5	105	36	7	8-22	330	2½"	74
	80	3	356	210	168.5	127	39	7	8-22	356	3"	90



External dimensions

Pressure (Class)	Nominal diameter		Size
	mm	inc	L		D	D1	D2	b	f	Z-φd
			RF	BW
150	150	6	559	559	280	241	216		2	8-φ22
	200	8	660	660	343	298.5	270		2	8-φ22
	250	10	787	787	407	362	324		2	12-φ25
	300	12	838	838	483	432	381		2	12-φ25
	350	14	889	889	534	476	412.8		2	12-φ29
	400	16	991	991	597	540	470		2	16-φ29
	450	18	1092	1092	635	578	533.4		2	16-φ32
	500	20	1194	1194	699	635	584		2	20-φ32
	600	24	1397	1397	813	749	692		2	20-φ35



Pressure (Class )	Nominal diameter		Size
	mm	inc	L			D	D1	D2	f	Z-φd
			RF	RJ	BW
300	150	6	559	559	559	318	270	216	2	12-φ22
	200	8	660	660	660	381	330	270	2	12-φ25
	250	10	787	787	787	445	387.4	324	2	16-φ29
	300	12	838	838	838	521	450.8	381	2	16-φ32
	350	14	889	889	889	584	514.4	412.8	2	20-φ32
	400	16	991	991	991	648	571.5	470	2	20-φ35
	450	18	1092	1092	1092	711	628.6	533.4	2	24-φ35
	500	20	1194	1194	1194	775	685.8	584	2	24-φ35
	600	24	1397	1397	1397	915	812.8	692	2	24-φ41



Pressure (Class )	Nominal diameter		Size
	mm	inc	L			D	D1	D2	f	Z-φd
			RF	RJ	BW
600	150	6	559	562	559	356	292	216	7	12-φ29
	200	8	660	664	660	420	349	270	7	12-φ32
	250	10	787	791	787	508	432	324	7	16-φ35
	300	12	838	841	838	559	489	381	7	20-φ35
	350	14	889	891	889	603	527	413	7	20-φ38
	400	16	991	994	991	686	603	470	7	20-φ41
	450	18	1092	1095	1092	743	654	533	7	20-φ45
	500	20	1194	1200	1194	813	724	584	7	24-φ45
	600	24	1397	1406	1397	940	838	692	7	24-φ51



Pressure (Class )	Nominal diameter		Size
	mm	inc	L			D	D1	D2	f	Z-φd
			RF	RJ	BW
900	100	4	457	460	457	290	235	157	7	8-φ32
	150	6	610	613	610	381	317.5	216	7	12-φ32
	200	8	737	740	737	470	393.5	270	7	12-φ38
	250	10	838	841	838	545	459.5	324	7	16-φ38
	300	12	965	968	965	610	533.5	381	7	20-φ38
	350	14	1029	1038	1029	640	559	413	7	20-φ41
	400	16	1130	1140	1130	705	616	470	7	20-φ45
	450	18	1219	1232	1219	785	686	533	7	20-φ51
	500	20	1321	1334	1321	855	749.5	584	7	20-φ54
	600	24	1549	1568	1549	1040	902	692	7	20-φ67



Pressure (Class )	Nominal diameter		Size
	mm	inc	L			D	D1	D2	f	Z-φd
			RF	RJ	BW
1500	100	4	546	549	546	310	241.5	157	7	8-φ35
	150	6	705	711	705	395	317	216	7	12-φ38
	200	8	832	841	832	485	393.5	270	7	12-φ45
	250	10	991	1000	991	585	482.5	324	7	12-φ51
	300	12	1130	1146	1130	675	517.5	381	7	16-φ54
	350	14	1257	1276	1257	750	635	413	7	16-φ60
	400	16	1384	1407	1384	825	705	470	7	16-φ67



Pressure (Class )	Nominal diameter		Size
	mm	inc	L			D	D1	D2	f	Z-φd
			RF	RJ	BW
2500	100	4	673	683	673	355	273	157	7	8-φ35
	150	6	914	927	914	485	368.5	216	7	8-φ41
	250	8	1022	1038	1022	550	438	270	7	12-φ54
	300	10	1270	1292	1270	675	540	324	7	12φ67
	300	12	1422	1445	1422	760	619	381	7	12-φ73
