| Quantity: | |
|---|---|
1, PRODUCT DESCRIPTION:

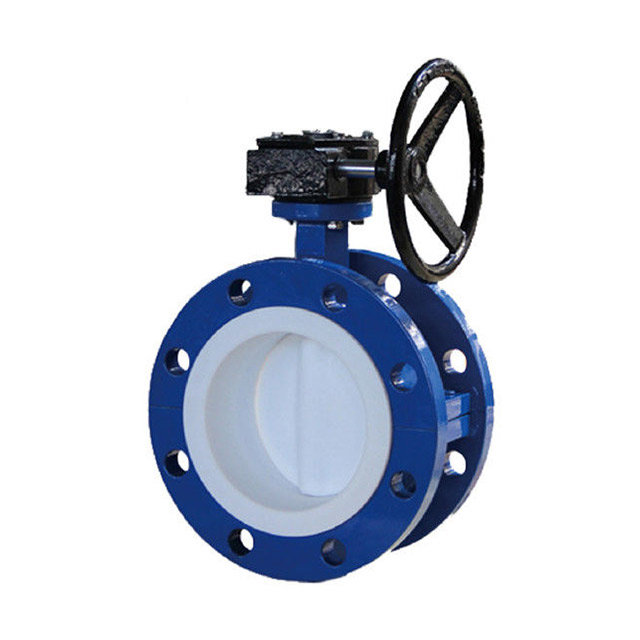

Concentric Double Flanged Butterfly Valve With PTFE Seat:
Design: EN593 / BS5155 / MSS SP-67
Class: PN10 / 16, 125/150Lbs
Face to face: BS5155, ISO5752 Series 13
Flange Connection: GB, DIN, BS, JIS, ANSI
Size: DN80-DN1600
Size / Working Pressure | Operator | Material of Main Parts |
DN80-DN1600: PN10-16 | Worm Gear | Body: Ductile Cast Iron (ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10); |
2, PACKAGEING & SHIPPING:
The normal package is wooden box(Size: L"W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.
1. Product packed by Standard Export Carton or Upon Requests of customer
2. We can offer products on time, shipping by ocean,by air or DHL, Fedex, TNT,UPS
3, PRODUCT FEATURE:
1. Integral gluing: The valve adopts integral gluing. Its good covering performance and precise geometric size ensure reliable sealing and long service life.
2. Light weight: The valve body is made of ductile iron, light weight and easy to install.
3. Flat-bottomed seat: The bottom adopts the same flat-bottomed seat design as the water pipe, which produces no sundries and is more reliable in sealing.
4. Corrosion resistance: Inner cavity is coated with non-toxic epoxy resin to prevent corrosion and rust. It can be used not only for raw drinking, but also for sewage system.
5. Three "O" seals: Stem is sealed with three O-rings, with small friction resistance, light switch and no leakage.
4, FAQ:
Q: Can i get a sample?
A: yes, of course, we looking forward to establishing a long term relationship with you.
Q: How soon can our order be delivered?
A: All items will be shipped on or before the date we agreed.
Q: Can you provide OEM/ODM?
A: Yes, we can. Contact supplier for more details.
Q: Payment methods accepted?
A: T/T, L/C or any way you want. Please Contact supplier let us know.
Q: Delivery methods provided?
A: We provide all the logistics methods in Ali logistics.
