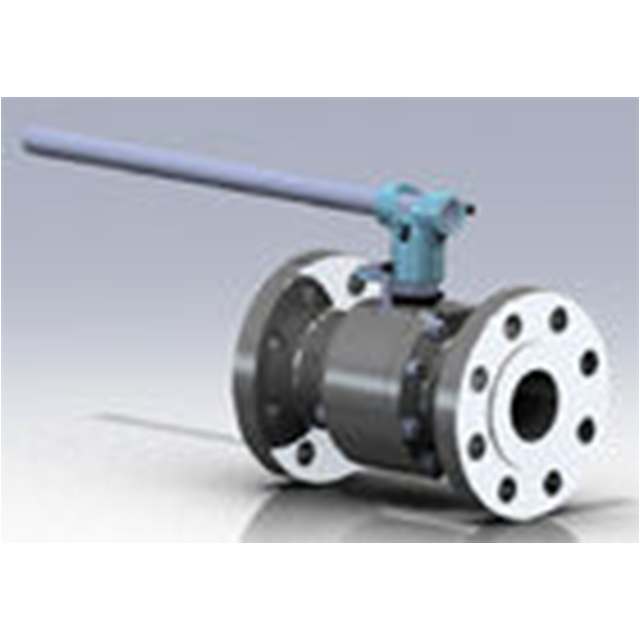

Size: | NPS: 1/2”~8” | Pressure: | 150LB To 2500LB |
Temperature: | 196℃~610℃ Low Temperatue, Normal Temperature And High Temperature | Body And Trim Material: | Cast Steel, WCB,ASTM A105, ASTM A350 LF2, ASTM A182 F304 F304L F316/F316L/F51 F53 F55,ASTM A351 CF8 CF8M CF3M ASTM A182 F6a 17-4PH |
Seat Material: | PTFE, RPTFE, DEVLON, Molon,PEEK,Metal Seat | Body And Stem Sealing: | Oring(FKM,FFKM NBR,FPM HNBR, VITON,EPDM, AFLAS), Spiral Wound Gasket(316SS+ Graphite) Packing(Graphite, PTFE) |
Operation: | Wrench, Lever, Gearbox, Pneumatic, Hydraulic, Electric. | Design Feature: | Casting ,Forging, Full Bore,Reduced Bore,Uni-body,Split Body,Three-pc Ball Valve,Side Entry Design,Split Body, Side Entry Design,Metal To Metal Sealing, |
High Light: | metal seated floating ball valve , 900lb soft seated ball valve , rf connection side entry ball valve | ||
Floating Ball Valve,Seat Supported Ball Valve,Side Entry Ball Valve,Soft Seat,Metal Seat,Low and high temperature valve
Design Data
Design standard: API 6D,DIN3357-1 , EN12516-1
Face to Face standard: API6D, ASME B16.10, DIN3202
Connecting Standard: ASME B 16.5, ASME B16.47, DIN 2543/4,ASME B 16.25
Test & Inspect Standard: API 6D ,API 598
Working Temperature: -196℃~610℃
Connection type: RF,RTJ,FF,BW.BSPT,NPT
Sour environment:NACE MR0175
Design Feature
1: Full bore or reduced bore
2: Two-Piece downstream sealing
3: Fire safe design(API 607)
4: Blowout-proof system
5: Anti-static design
6: Fugitive emission testing(optional)
Ball Valve Type | Design and Manufacture | Face to Face/End to End | Flange Dimensions | Pressure Temperature Rating | Inspection and Test |
Split Flange ball valve | BS5351 | ANSI B16.10 | ANSI B16.5 | ANSI B16.34 | API6D |
Fixed flange ball valve | API6D/API608 | API6D | ANSI B16.47 | ANSI B16.34 | API598 |
Main Material
Body material | Trim material | Seal material | Gasket/Packing |
WCB/LCB/CF8/CF8M/CF3/CF3M,ETC. | SS410, SS420, SS304, SS316,ETC | PTFE, RPTFE, PEEK, PPL, ETC. | GRAPHITE. PTFE, PPL. ETC. |
The ball is seat supported for size 8” and smaller.
Fire safe design
Coosai ball valves ensures 100% pass of the fire safe test.All the possible external leakage point between stem and body,body and adapter applies two sealed design,primary O-ring seals and secondary metal graphite spiral wound gasket. When the O-Ring were burned, the secondary stainless steel+graphite still can prevent the process medium from external leakage . Valve design fully accords with API 607, API 6FA, BS 6755, JB / T 6899 and other standards,
Fire seals lip, when the soft seat were burned, the ball will be pushed to the seals lip and form a seal in emergence to prevent large spill.
low-out proof stem:
The stem is made separately from the ball with integral T-type round shoulder, retained by bland .(other designs are Available on request)
Anti-static device:
Spring plus graphite type anti-static device are applied between the ball ,stem, gland Flange and body to keep the electrical Continuity between all the metallic components . And ensure the resistance lower than the most severe service requirement.

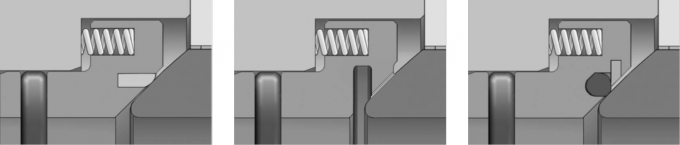

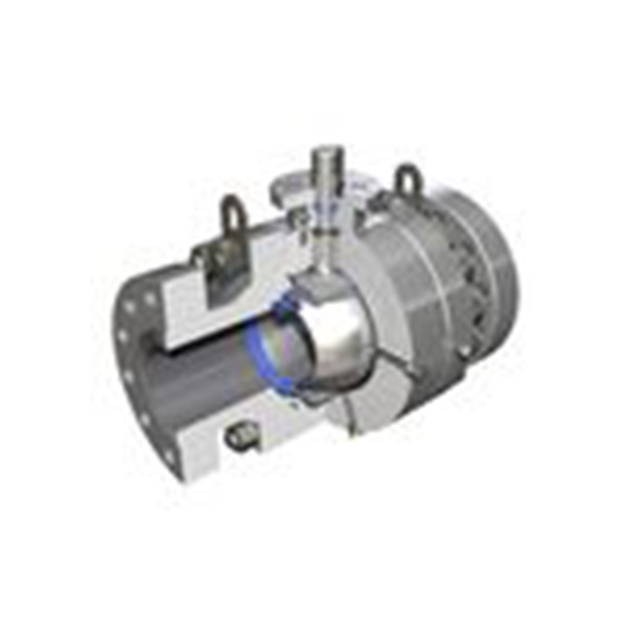

Sealing Options
Soft seat Metal to Metal O-Ring seal
Simple structure reliable sealing Applicable to particulate Reliable sealing low torque meet customers' high
wide application low cost. media conditions sealing reliability and low torque requirements
