Profile
Single seal
Unbalanced
Independent of direction of rotation
Elastomer bellows

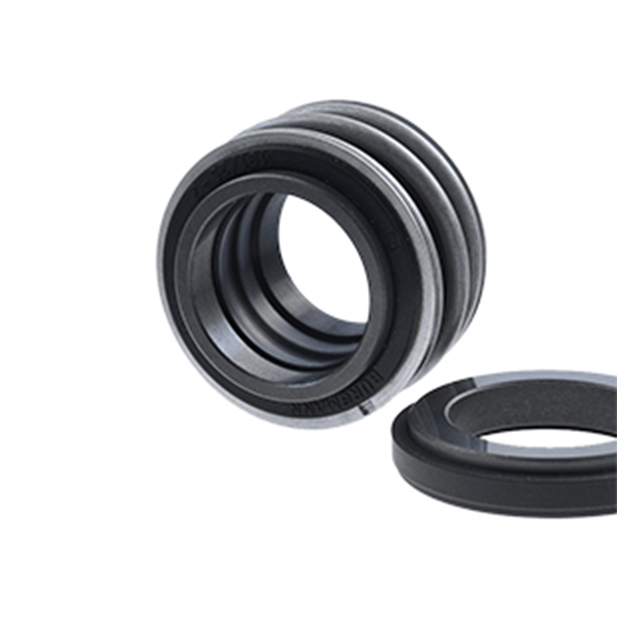

Burgmann MG1 seal replacement
Mechanical seals of the RS-MG1 series are amongst the most commonly used. The bellows is not subjected to any torsional stress and its ingenious design incorporates several functions, as seal face carrier, secondary sealing element and drive collar. The seal face is driven through the spring and “L”-rings. There are no bonded joints and all the face materials are interchangeable without having to modify any dimensions. Highly recommended for duties with media containing solids eg. in waste water and sewage applications.
Operating limits
Specification: 10~110mm
Pressure: ≤1.2Mpa
Temperature:-20℃~120℃
Linear speed: ≤10m/s
Axial movement: ±0.5mm
Combination of materials
Sealing face: Carbon, Silicon carbide, Tungsten carbide
Secondary sealing: NBR, FKM, EPDM
Metal component: SS304, SS316
