Intelligent Pigging System

Intelligent Pigging System: Integrated Launching, Receiving & Automated Pipeline Assessment

Beyond Traditional Pigging: A Complete Integrity Solution

This advanced system redefines pipeline maintenance by integrating the core functions of a pig launcher and receiver with sophisticated, automated damage detection capabilities. It transforms a routine cleaning or batching operation into a comprehensive diagnostic procedure, providing real-time data on the pipeline's internal condition. This is not just a tool for sending and receiving pigs; it is a complete solution for assessing the health of your pipeline assets.

How the Integrated Solution Works

The process begins like a standard pigging operation but adds a crucial layer of intelligence.

1. Deployment: An intelligent inspection pig (or "smart pig"), equipped with high-resolution sensors such as Magnetic Flux Leakage (MFL) or Ultrasonic Testing (UT), is loaded into the launcher.

2. Automated Journey & Data Collection: Once launched, the smart pig travels through the pipeline. As it moves, its sensors continuously scan the pipe wall, collecting vast amounts of data on metal loss, corrosion, cracks, dents, and other anomalies.

3. Precision Location Tracking: The system incorporates advanced localization technology. By using a combination of odometer wheels on the pig, synchronized GPS timestamps at the surface, and the detection of known features like welds and bends, the system can pinpoint the exact location of every detected defect with remarkable accuracy.

4. Reception & Data Retrieval: Upon completing its run, the pig is captured in the receiver. The collected data is then downloaded from the pig's onboard memory module.

5. Analysis & Reporting: Specialized software processes the raw data to generate detailed reports. These reports provide a clear visualization of the pipeline's condition, mapping out defects by their precise location (distance from the launch point and clock position), severity (e.g., percentage of wall thickness lost), and type.

Key Components of the System

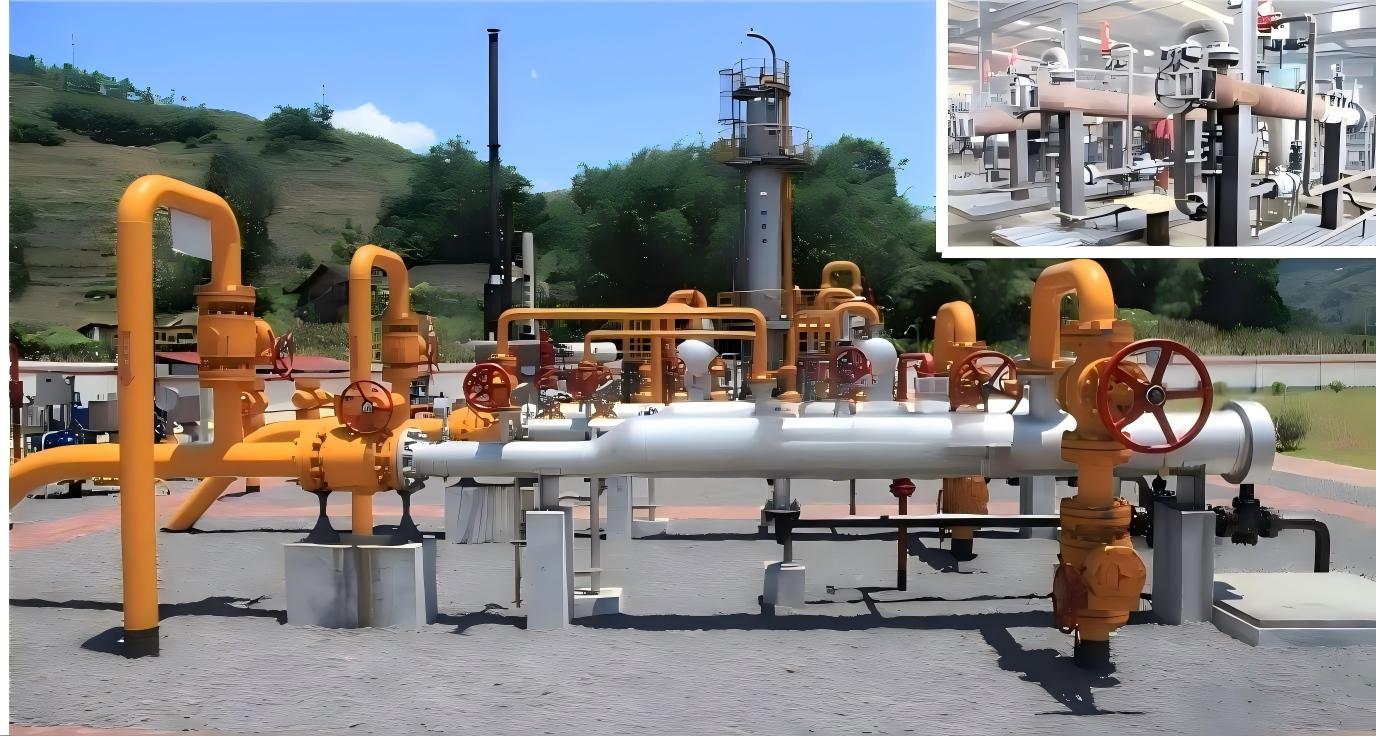

• Intelligent Launcher/Receiver Station: Our robust launcher and receiver are designed to safely handle sensitive inspection tools. They feature quick-opening closures and are engineered to minimize turbulence during launch and reception, protecting the pig's delicate instruments.

• Smart Inspection Pig: The heart of the system. These pigs are customized for your pipeline's diameter and product, carrying a payload of sensors specifically chosen to detect the threats most relevant to your operation.

• Data Acquisition & Localization Unit: This includes the electronics within the pig for data logging and the surface equipment required for synchronizing and verifying the pig's position throughout its journey.

• Analysis Software Suite: A powerful software platform that converts complex sensor readings into actionable intelligence, presenting a clear, color-coded map of pipeline integrity issues.

Applications and Value Proposition

This integrated system is indispensable for operators committed to proactive asset management and safety.

• Proactive Corrosion Management: Identify and quantify internal corrosion before it becomes a critical issue, allowing for targeted repairs and extending the pipeline's operational life.

• Accurate Damage Assessment: Precisely locate and measure dents, gouges, and cracks caused by third-party interference or ground movement.

• Regulatory Compliance: Generate verifiable, high-quality data to meet stringent pipeline safety and integrity regulations.

• Optimized Maintenance Budgets: Move from reactive to predictive maintenance. By knowing the exact location and severity of defects, you can plan interventions efficiently, avoiding unnecessary excavations and costly unplanned shutdowns.

• Enhanced Safety: Significantly reduce the risk of leaks and failures by gaining a complete understanding of your pipeline's condition.

Design Considerations

As a fully integrated solution, the system is engineered based on a thorough analysis of your specific needs:

• Pipeline specifications (diameter, pressure, material, fluid type).

• Primary integrity threats (e.g., internal corrosion, stress corrosion cracking).

• Required detection sensitivity and location accuracy.

• Data format and reporting requirements.
