Profile
Single seal
Balanced
Independent of direction of rotation
Metal bellows

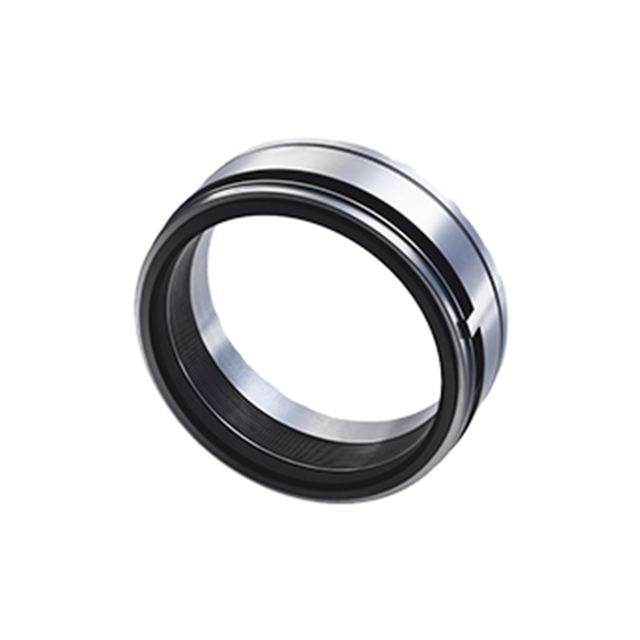

Burgmann MFL65 seal replacement
RS-MFL65 series is developed for high temperature range and sliding velocity, The transmission of torque exerts no strain on bellows, it does not require rubber secondary seal, The non-compensational ring can be designed specifically.
Operating limits
Specification: 16~100mm
Pressure: ≤2.5Mpa
(Double layer wave plate ≤5.0Mpa)
Temperature:-20℃~400℃
Linear speed: ≤50m/s
Axial movement: ±1.0mm
Combination of materials
Sealing face: Carbon, Silicon carbide, Tungsten carbide
Secondary sealing: NBR, FKM, EPDM, FFKM
Metal component: SS304, SS316, Hast.C, 4J42, Ti
Bellows: SS316, AM350, Hast.C, Alloy718
