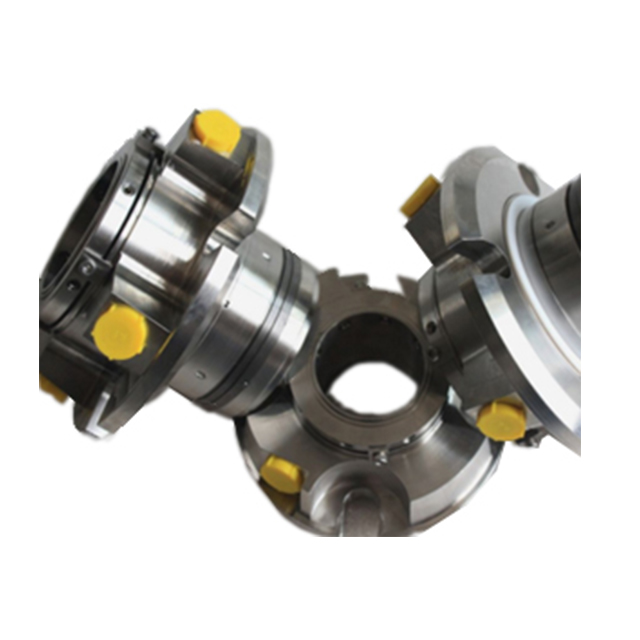

RS-5620

Profile

Double seal

Balanced

Independent of direction of rotation

Spring product protected

John Crane 5620 seal replacement

Operating limits

Specification: 24~140 mm or 1”~5.5”

Pressure: ≤2.0Mpa

Temperature:-50℃~204℃

Linear speed: ≤23m/s

Combination of materials

Sealing face: Carbon, Silicon carbide, Tungsten carbide

Secondary sealing: NBR, FKM, EPDM, FFKM

Metal component: SS304, SS316, Hast.C, Ti
