Profile
Single seal
Balanced
Independent of direction of rotation
Burgmann Cartex seal replacement

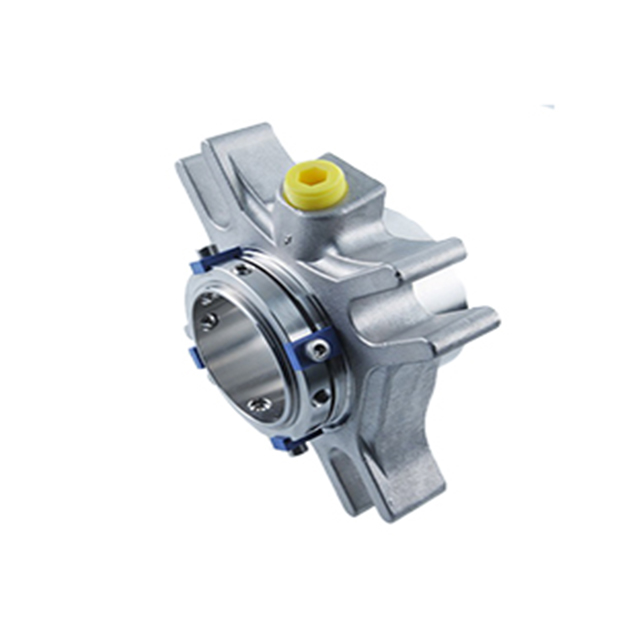

RS-Cartex mechanical seals are fully preassembled. They are balanced, can be used in either direction of rotation and come with all the connections you need for the most common modes of operation.
Operating limits
Specification: 25~100mm
Pressure: ≤2.5Mpa
Temperature:-40℃~220℃
Linear speed: ≤20m/s
Axial movement: ±1.0mm
Combination of materials
Sealing face: Carbon, Silicon carbide, Tungsten carbide
Secondary sealing: NBR, FKM, EPDM, FFKM
Metal component: SS316, Hast.C, Ti
