Profile
Single seal
Balanced
Conical spring
Independent of direction of rotation
Multiple springs

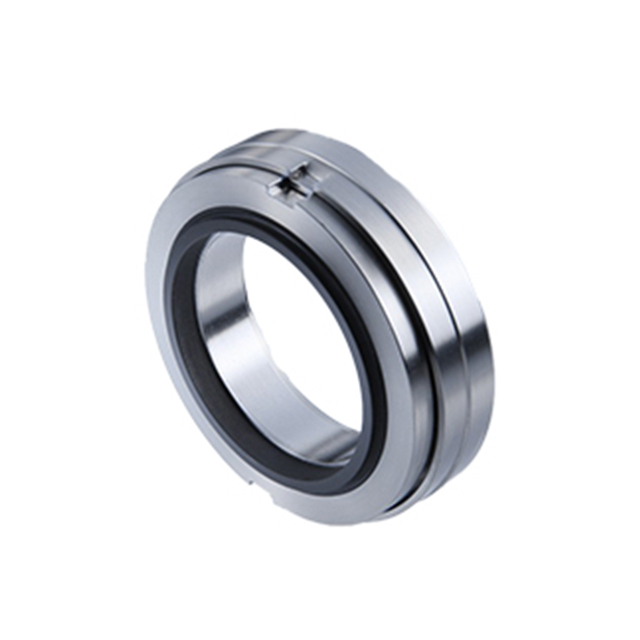

Burgmann H10 seal replacement
Mechanical seals of the RS-H10 range have a short installation length (axial). It can replace the framework oil seal, and be widely used in the high speed equipment.
Operating limits
Specification: 15~100mm
Pressure: ≤2.5Mpa
Temperature:-20℃~250℃
Linear speed: ≤35m/s
Axial movement: ±0.5mm
Combination of materials
Sealing face: Carbon, Silicon carbide, Tungsten carbide
Secondary sealing: NBR, FKM, EPDM, FFKM
Metal component: SS304, SS316, Hast.C, Ti
