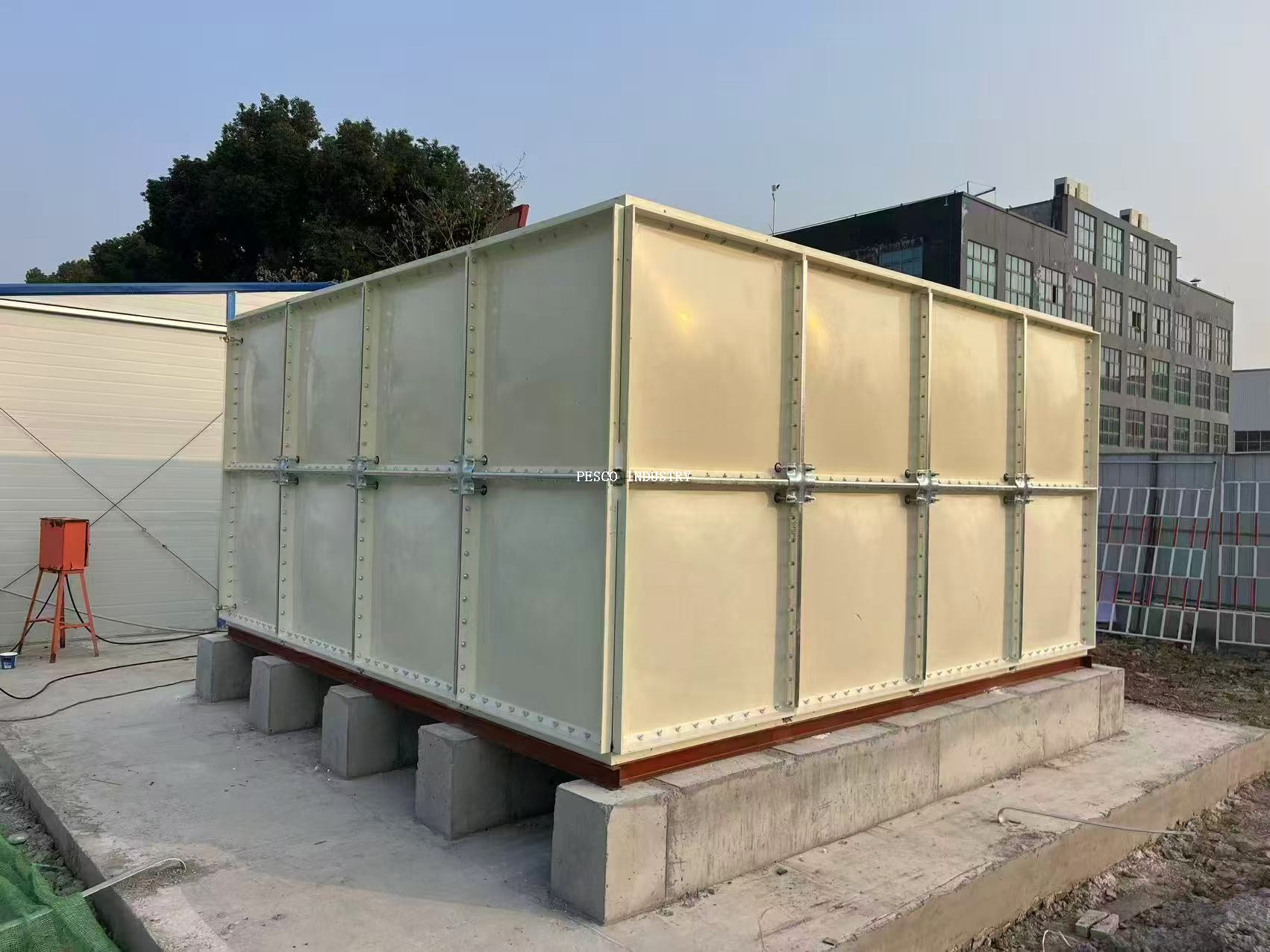

SMC assembled water tank
SMC assembled water tank is a new type of water tank currently adopted internationally. Assembled from high-quality SMC water tank panels as a whole. Its characteristic is the use of food-grade resin, so the water quality is good, clean and pollution-free. It has the characteristics of high strength, light weight, corrosion resistance, beautiful appearance, long service life and convenient maintenance and management.
The SMC assembled water tank produced by our company is the first batch of recommended products in the National Building Materials Industry Bureau and the Ministry of Construction in 1998 and 1999. 300 companies fully meet the technical performance requirements of the National Building Materials Industry Bureau standard JC658.1 - 1997. The water tank has been tested by relevant national departments and meets the requirements of GB/T17219 - 98 "Safety Evaluation Specification for Drinking Water Transmission and Distribution Equipment and Protective Materials". The water quality meets the national "Drinking Water Standard" (GB5749 - 85). Widely applicable to industrial and mining enterprises and institutions, residential buildings, hotels, restaurants and other buildings. It is used as a water storage facility for drinking water, reclaimed water treatment, fire water and other water use.
SMC Performance and specifications of molded veneer
SMC water tank is made of SMC sheets produced from food-grade resin, which are subjected to high temperature, high pressure, and mechanical pressing. In terms of manufacturing process, the method of machine pressing is adopted, increased the strength of earthquake resistance and impact resistance, overcame the defect of uneven strength of hand pasted products, and improved the compressive strength and service life. In terms of exterior design, the corner of the panel has a convex structure that has passed the pressure test of the enterprise. The specifications of the 90° connecting edges around the panel which do not require complex connectors during assembly, making it more flexible and stable. The specifications of the water tank panel are: 1000 × 1000mm; 1000 × 500mm; 500 × 500mm. The thicknesses are 4mm, 6mm, 7mm, 7.5mm, 8mm, 12mm, and 14mm. The 14mm thick plate is specifically used as a water tank cover plate. Therefore, water tanks of the required capacity can be assembled arbitrarily.
Physical and chemical properties of single veneer
Tensile strength, MPa | ≥60 |
| Bending strength, MPa | ≥100 |
| Bending degree, GPa | ≥7.1 |
| Water Absorption | ≤1.0% |
| Glass Fiber Content, % | ≥25 |
Water tank performance
Leakage | No leakage after filling with water |
Deformation degree after loading | After filling with water: side wall ≤1.0‰ of max height;
top surface ≤0.5‰ of top diagonal |
Water quality | Conform to GB5749 - 85
Green Technology

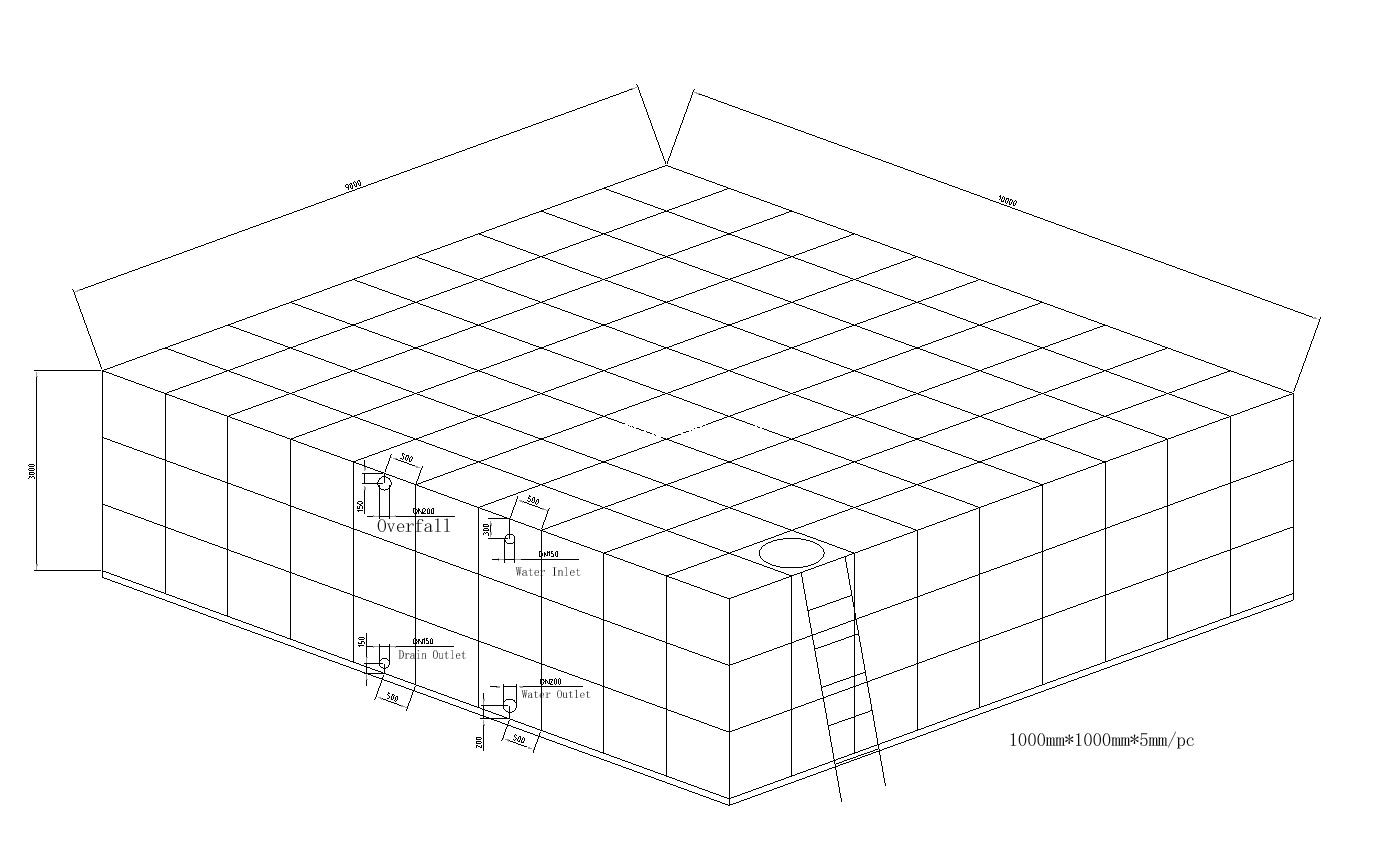

Water tank structure
SMC assembled water tank is assembled on-site from SMC molded plates, sealing materials, metal structural components, and piping systems. Bringing great convenience to design and construction. General water tanks are designed according to standards, while special water tanks require specialized design. Water tanks of 0.125 - 1500 cubic meters can be assembled according to users' needs. If the original water tank needs to be replaced, there is no need to renovate the house, and has a strong adaptability. Specially developed standardized product sealing tape: non-toxic, water-resistant, highly elastic, minimal permanent deformation, secure sealing. The water tank has high overall strength, no leakage, no deformation, easy maintenance and repair.
Note: The specifications and dimensions of the steel bracket should match the connection parts between the box plate and anti-rust. When water level H ≤3000mm: use 100 channel steel; when H >3000mm: use 20mm steel. Adjust T-shaped steel accordingly, add support points between angle steel and concrete strip foundation.

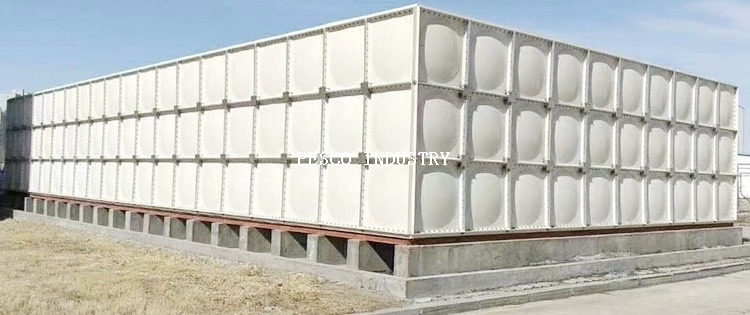

SMC assembled water tank
